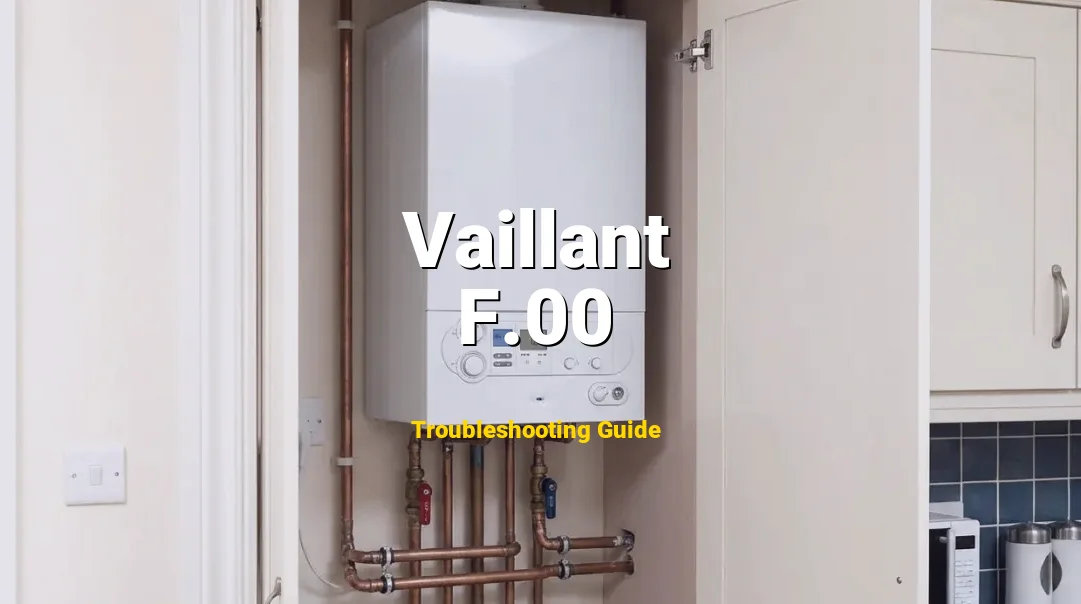

Vaillant Boiler Error F.00 Solved: Detailed DIY Repair

I know how frustrating it is to wake up to a cold house or a chilly shower, but take a deep breath! While it sounds technical, this is a very common issue with a logical troubleshooting path. Whether it’s a loose wire or a sensor that’s simply reached the end of its life, we’re going to walk through this together, step-by-step, to get your home warm again.

Symptoms of a Vaillant F.00 Fault

When your Vaillant boiler encounters an F.00 error, it doesn’t just stop working; it usually gives you a few “clues” that the flow sensor is the culprit. Here is what you should look out for:

• The Digital Display: The most obvious sign is the code “F.00” flashing on your control panel, often accompanied by a red warning light or a “Reset” prompt.
• Lukewarm or Cold Water: Since the boiler cannot accurately gauge how hot the water is, it will often refuse to fire up the burner. This results in radiators that stay cold and taps that only provide lukewarm water.
• Short Cycling: You might hear the boiler try to ignite, run for a few seconds, and then abruptly click off. This happens because the PCB detects an “open circuit” from the sensor and immediately kills the flame for safety.
• Pump Noise: Sometimes the pump will continue to run as the boiler tries to circulate water, but without the heat, you’ll just hear the sound of water moving through the pipes without any actual warmth.

Troubleshooting & Replacement Instructions

Troubleshooting & Replacement Instructions

Before we begin, a very important Safety Warning: While checking a sensor is a common DIY task, if you ever feel uncomfortable or smell gas, stop immediately and call a Gas Safe Registered engineer. Ensure the power is completely disconnected before touching any internal components.

Step 1: The Total Power Down

Safety is our first priority! Locate the fused spur (the switch with a fuse) near your boiler and turn it off. For extra safety, you can turn off the power at your main consumer unit. Wait at least 5 minutes to allow any residual electricity in the capacitors to dissipate. You don’t want any surprises while you’re working!

Step 2: Removing the Front Panel

Most Vaillant ecoTEC models have two screws located at the very bottom of the boiler. Use your Phillips head screwdriver to loosen these (they often stay attached to the case so you don’t lose them). Once loose, gently pull the bottom of the casing toward you and lift it upward to unhook it from the top. Set the panel aside in a safe place where it won’t get scratched.

Step 3: Locating the Flow NTC Sensor

Look for the main heat exchanger (the large silver box). The “Flow” pipe is typically the pipe on the far left. Look for a small plastic component clipped directly onto that copper pipe with two wires (usually blue or red) plugged into it. This is your target: the Flow NTC Sensor.

Step 4: The “Wiggle” Test & Inspection

Check the wiring harness leading to the sensor. Give the plug a gentle tug to see if it’s loose. Unplug it and look inside the connector for any signs of green corrosion or dampness. If it’s just loose, plugging it back in firmly might solve your problem! If you see corrosion, you’ll need to clean the pins gently or replace the wire lead.

Step 5: Testing with a Multimeter

If the wires look good, let’s test the sensor’s health. Set your multimeter to the Ohms (Ω) setting. Touch the probes to the two metal pins on the sensor itself. At room temperature (20°C), you should see a reading around 12k to 15k Ohms. If your multimeter reads “OL” (Open Loop) or “0,” the sensor is definitely dead and needs to be replaced.

Step 6: Replacing the Sensor

Vaillant sensors are usually “wet” (screwed into the pipe) or “dry” (clipped onto the pipe).

• If it’s a clip-on: Simply unclip the old one and snap the new one in its place.

• If it’s a screw-in: You must drain the boiler first! Once drained, unscrew the old sensor, apply a bit of silicone grease to the new O-ring, and screw the new one in. Don’t over-tighten!

Step 7: Reassemble and Reset

Pop the front casing back on and secure those bottom screws. Turn the power back on. You will likely still see the F.00 code. Press and hold the “Reset” button (usually marked with a flame symbol with a cross through it) for about 3 seconds. The boiler should perform a startup sequence. If you hear the flame ignite and the radiators start to warm up, you’ve done it! Great job!

Technical Explanation of the Fault

Technical Explanation of the Fault

To fix the F.00 error, we first need to understand the “Why.” The F.00 specifically refers to an **interruption** in the flow NTC (Negative Temperature Coefficient) thermistor circuit. Here are the most common reasons this happens:

1. Component Failure (The Sensor Itself): NTC sensors work by changing their electrical resistance based on temperature. Over several years, the internal materials can degrade due to constant heating and cooling cycles. Eventually, the internal circuit snaps, creating a “break” that the boiler interprets as an interruption.
2. Corrosion and Moisture: Boilers are full of water, and occasionally, tiny “pinhole” leaks or condensation can form near the sensor. If water gets into the electrical plug that connects to the sensor, it causes corrosion. This green or white powdery buildup blocks the electrical signal from reaching the main control board.
3. Vibration and Loose Wiring: Boilers have moving parts like pumps and fans. Over time, these subtle vibrations can wiggle a connector loose. If the plug isn’t snapped firmly onto the sensor pins, the connection becomes intermittent or fails entirely, triggering the F.00 code.
4. PCB Communication Error: In rarer cases, the sensor and the wires are fine, but the “brain” of the boiler (the Printed Circuit Board) has a dry solder joint or a blown component that can no longer “read” the sensor’s incoming data.

How to Prevent Error F.00

Now that you’ve got your heat back, let’s make sure this doesn’t happen again next winter. Here are three expert tips for boiler longevity:

1. Annual Professional Servicing: A Gas Safe engineer doesn’t just look at the flame; they check the resistance of your sensors during their visit. Replacing a sensor that is “drifting” out of spec before it fails can save you from a cold morning in the future.
2. Install a Magnetic System Filter: Internal sludge (iron oxide) can coat the inside of the pipes where the sensors sit. This causes the sensor to read temperatures incorrectly or overheat, shortening its lifespan. A filter keeps the water clean and the sensors happy.
3. Check for Minor Leaks: Once a month, take a quick peek under your boiler. If you see even a single drop of water on a pipe, dry it off and investigate. Preventing moisture from reaching the electrical connectors is the best way to avoid the “interruption” fault.

Frequently Asked Questions

Q: Can I just keep resetting the boiler to bypass F.00?
A: Unfortunately, no. If the sensor is physically broken or disconnected, the reset might clear the code for a few seconds, but the PCB will immediately detect the fault again and shut down. It is a hardware failure that requires a physical fix.

Q: Is the F.00 error dangerous?
A: Not directly. Vaillant boilers are designed with “fail-safe” logic. The F.00 code actually prevents danger by stopping the boiler from firing when it doesn’t know the water temperature. However, any electrical fault should be addressed promptly to prevent further damage to the PCB.

Q: How do I know if I need a “Flow” sensor (F.00) or a “Return” sensor (F.01)?
A: The error code tells the story! F.00 is specifically the “Flow” (the hot water leaving), while F.01 is the “Return” (the water coming back). While they are often the same part number, they are located on different pipes. Always trust the code on the screen!
